WE-MF2 SUPERMINI 3D PACKING WIPES PRODUCTION LINE-ZLINK TECHNOLOGIES (ZHENGZHOU) CO. LTD.

MACHINE FEATURES & HIGHLIGHTS

This advanced equipment features a nonwoven jumbo roll with automatic edge position controller and a post-slitting automatic edge position controller, ensuring high-speed, stable operation and precise folding accuracy. The resulting products boast a stylish and attractive appearance, superior hygiene standards, and accelerated production speeds, all while being convenient and easy to transport.

Automatic Splicing
Non-stop automatic splicing with automatic rejection of splicing joints.
Automatic Edge Position Controller
Ensures high-speed, stable operation, and precise folding accuracy for jumbo rolls and slitting lanes.
Hygiene Cleaning
Sanitary-grade wet wipes conveying belt features a tool-free, easy disassembly design for effortless cleaning and disinfection.
Automatic Bagging
The mechanical arm automatically opens bags and detects if a bag is not opened, preventing issues.
Trimming Recovery
Automatically recycles trimming waste to the bin without stopping the machine.
Rotary Bag Opener
Detects and rejects non-bagged products to avoid unsealed and improperly cut products.
Self-Healing function
The equipment includes a self-healing inspection system that automatically addresses some faults without halting the operation.

TECHNICAL DATA

Raw MaterialsSpunlace non-woven fabric and other dispersible and degradable materials.
Nonwoven Unwind ShaftTwo sets of nonwoven unwind shafts with non-stop automatic splicing. One shaft is operational while the other is on standby.
Jumbo Roll SpecificationTwin rolls with a width of 280mm-400mm, diameter of Φ1200mm, and core diameter of Φ76.2mm (3"). Supports twin rolls or jumbo rolls with online slitting capability.
Folding TypeZ, N, W folding (other types available upon request).
Folded SizesLength: 70mm, Width: 35mm, Height: 22mm.
Open SizesLength: 140mm-200mm, Width: 140mm-200mm.

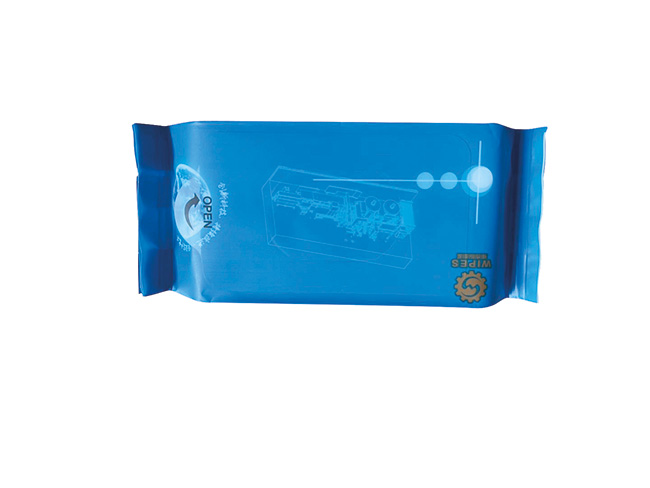

Packing Film SpecificationPreformed bag with die-cut and label, dimensions: Length: 115mm, Width: 41mm, Height: 22mm (customizable).
Packing MethodInsert and seal.
Production Speed55 bags per minute per packing machine.
Equipment FootprintLength: 21000mm, Width: 4200mm, Height: 2100mm.
Rated PowerAC380V (customizable voltage), 50/60Hz, three-phase five-wire system, 33KW.
Compressed Air0.6-0.8MPa, 150L/min.
Net Weight Approximately 10000KG.
Packaging MaterialPreformed bag with die-cut and label, diameter: φ500mm, core diameter: φ76.2mm (3"), eye mark length: 50mm, width: 5mm. Compatible with PET/PE, BOPP, PET/AL/PE, and other heat-sealable materials.
Optional EquipmentCheckweigher with metal detector and rejector system Date coding Visual detection and rejection system SCADA system

Solutions(options)

: WE-BM60

WE-BM60 MULTI-PACKMACHINE

View more >>

: WE-MP80

WE-MP80 MULTI-PACKMACHINE

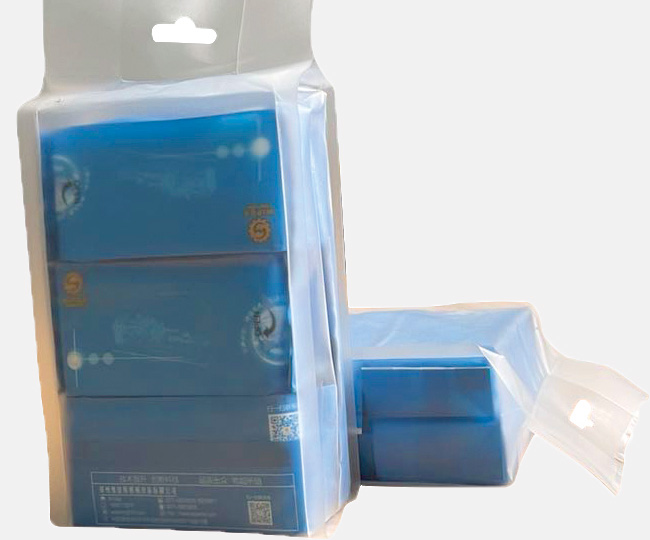

The WE-MP80 wet wipes multi-pack machine is engineered for optimal efficiency and market responsiveness, featuring a handbag-style packaging that caters to contemporary consumer demands for portability and cost-effectiveness.
